| Place of Origin: | Suzhou |
| Brand Name: | Tentcho |
| Material: | 6061-T6 |
| Custom Printing Available | Yes |
| Custom Size | Yes |

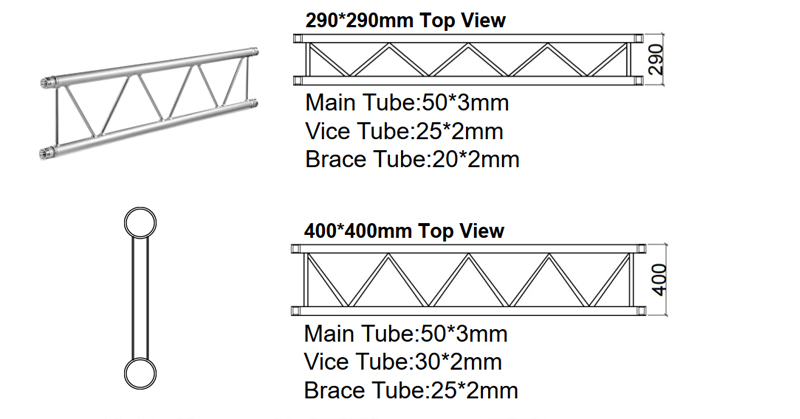

| Type Truss | Ladder |
Description:
Ladder Spigot Truss is generally used for truss roof. It is convenient to hang sound and light equipments in the middle of the truss. Enhance the stability of the whole system. The size and quantity are configured according to the overall roof size of the truss.

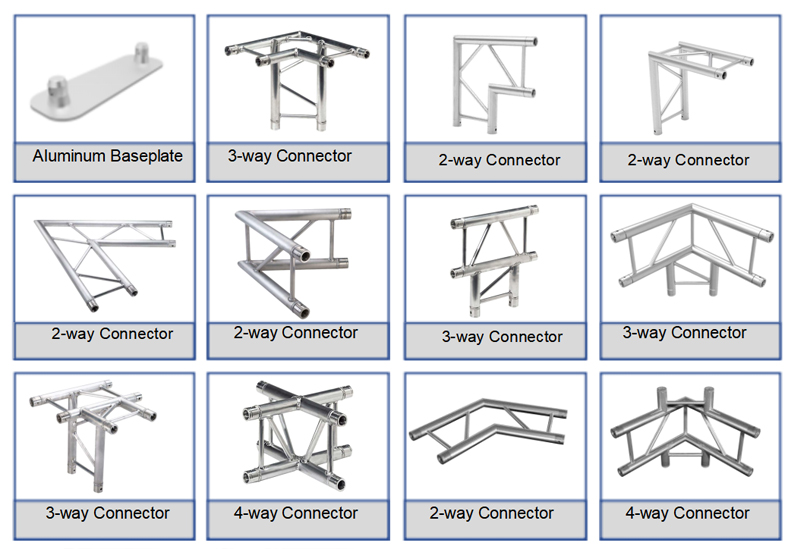

parts:
Loading Data:
| 290*290m Ladder Spigot Truss Loading Data | ||||||||||
| Span | UDL | Deflecation | CPL | Deflecation | Single Load in 3rd Points | Deflecation | Single Load in 4rd Points | Deflecation | Single Load in 5rd Points | Deflecation |
| 2m | 565. 0kg/m | 3.0mm | 708. 0kg | 2.Omm | 567. 0kg | 3.0mm | 387. 0kg | 2.0mm | 283. 5kg | 2.0mm |
| 3m | 375. 0kg/m | 6.Omm | 586. 2kg | 5.0mm | 503. 6kg | 10.0mm | 335. 8kg | 6.0mm | 278. 7kg | 6.0mm |
| 4m | 240.5kg/m | 13. 0mm | 501. 0kg | 11.0mm | 375. 8kg | 14.0mm | 250.5kg | 11.0mm | 207. 9kg | 11.0mm |
| 5m | 155.2kg/m | 21.0mm | 398.1kg | 17.0mm | 298.6kg | 21.0mm | 199. 1kg | 16.0mm | 167. 7kg | 17.0mm |
| 6m | 105.7kg/m | 30.0mm | 329.0kg | 24.0mm | 246. 8kg | 31.0mm | 164. 5kg | 24.0mm | 136. 5kg | 24.0mm |
| 7m | 75.8kg/m | 40.0mm | 279.2kg | 32.0mm | 209. 4kg | 41.0mm | 139. 6kg | 31.0mm | 115. 9kg | 33.0mm |
| 8m | 57. 4kg/m | 51.0mm | 241. 5kg | 42.0mm | 181.1kg | 54.0mm | 120. 8kg | 41.0mm | 100.2kg | 41.0mm |
| 9m | 45. 1kg/m | 69.0mm | 211. 8kg | 54.0mm | 158. 9kg | 67.0mm | 105. 9kg | 52.0mm | 87. 9kg | 53.0mm |
| 10m | 35. 6kg/m | 84.0mm | 187. 8kg | 64.0mm | 140. 9kg | 82.0mm | 93. gkg | 64.0mm | 77.9kg | 64.0mm |
